STANDARD FEATURES

-Engine driven compressor
-ABS (UV) Protected covers
-In-Cab control assembly
-Digital box temperature display
-High/Low pressure protection
-Condenser fan cycle control
-Automatic off cycle defrost control (medium temp)
-Automatic hot gas defrost (low temp)
-2 HP 230/1/60 Copeland compressor (standby models)
-Oil separation system (low temp)
-Two piece designed system

OPTIONAL FEATURES

-Hot water heat
-12 VDC water pump
-Electric heat
-230 V.AC 3 phase compressor

WARRANTY

A.T.C offers a one year parts and labour warranty on every refrigeration system.

Specifications are subject to change without notice.

DOWNLOAD BROCHURE

ENGLISH FRENCH

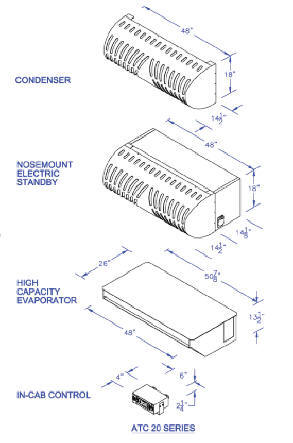

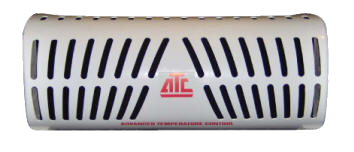

Truck Refrigeration Systems

SERIES 20

MODEL	EVAPORATOR RETURN AIR	BTU/HR (WATTS)		WEIGHT
MODEL	EVAPORATOR RETURN AIR	IN-TRANSIT	STANDBY	LB	KG
20MA	35F (1.7C)	21,000 (6155)		278	126
20LA	0F (-17.8C)	10,000 (2931)		278	126
20MEA	35F (1.7C)		15,600 (4572)	534	243
20LEA	0F (-17.8C)		6,200 (1817)	534	243

*Capacities and weights are approximate
