Climate Control Mobile, Inc.
3085 Seneca Street • Buffalo, NY 14224 • 716-825-2020

STANDARD FEATURES

-Engine driven compressor
-ABS (UV) Protected covers
-In-Cab control assembly
-Digital box temperature display
-High/Low pressure protection
-Condenser fan cycle control
-Automatic off cycle defrost control  (medium temp)
-Automatic hot gas defrost (low temp)
-1.5 HP 230/1/60 Copeland compressor  (standby models)
-Oil separation system (low temp)
-Two piece designed system

OPTIONAL FEATURES

-Hot water heat
-12 VDC water pump
-Electric heat
-230 V.AC 3 phase compressor

WARRANTY

A.T.C offers a one year parts and labour warranty on every refrigeration system.

Specifications are subject to change without notice.

DOWNLOAD BROCHURE

ENGLISH    FRENCH

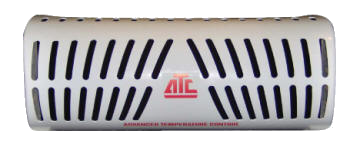

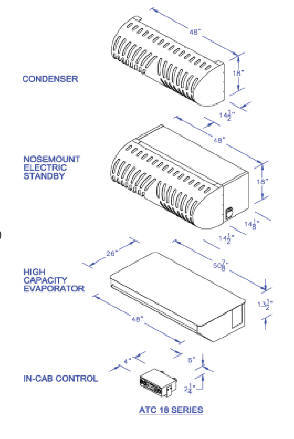

Truck Refrigeration Systems

SERIES 18

MODEL
EVAPORATOR
RETURN AIR
BTU/HR (WATTS)

WEIGHT
IN-TRANSIT
STANDBY
LB
KG
18MA
35F (1.7C)
17,000 (4982)
265
120
18LA 0F (-17.8C) 8,000 (2345)   265 120
18MEA 35F (1.7C)   14,800 (4338) 450 205
18LEA
0F (-17.8C)

5,950 (1744)
450
205
*Capacities and weights are approximate
