STANDARD FEATURES

-Engine driven compressor
-ABS (UV) Protected covers
-In-Cab control assembly
-Digital box temperature display
-High/Low pressure protection
-Condenser fan cycle control
-Automatic off cycle defrost control  (medium temp)
-Automatic hot gas defrost (low temp)
-1.5 HP 230/1/60 Copeland compressor  (standby models)
-Oil separation system (low temp)
-Two piece designed system

OPTIONAL FEATURES

-Hot water heat
-12 VDC water pump
-Electric heat
-230 V.AC 3 phase compressor

WARRANTY

A.T.C offers a one year parts and labour warranty on every refrigeration system.

Specifications are subject to change without notice.

DOWNLOAD BROCHURE

ENGLISH    FRENCH

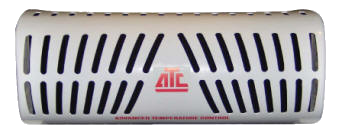

Truck Refrigeration Systems

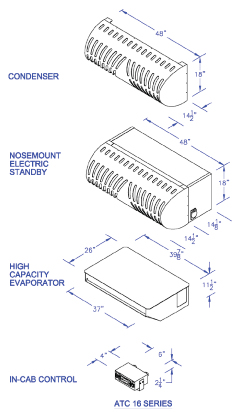

SERIES 16

MODEL
EVAPORATOR
RETURN AIR
BTU/HR (WATTS)

WEIGHT
IN-TRANSIT
STANDBY
LB
KG
16M
35F (1.7C)
14,500 (4250)
245
111
16LA 0F (-17.8C) 7,400 (2169)   245 111
16MEA 35F (1.7C)   13,500 (3957) 430 195
16LEA
0F (-17.8C)

5,600 (1641)
430
195
*Capacities and weights are approximate
