Climate Control Mobile, Inc.
3085 Seneca Street • Buffalo, NY 14224 • 716-825-2020

STANDARD FEATURES

-Engine driven compressor
-ABS (UV) Protected covers
-In-Cab control assembly
-Digital box temperature display
-High/Low pressure protection
-Condenser fan cycle control
-Automatic off cycle defrost control (medium temp)
-Two piece designed system
-Automatic hot gas defrost (low temp)
-Oil separation system (low temp)
-2 HP 230/1/60 compressor drive motor  (standby models)

OPTIONAL FEATURES

-Hot water heat
-12 VDC water pump
-Electric heat
-115 V.AC 1 phase compressor

WARRANTY

A.T.C offers a one year parts and labour warranty on every refrigeration system.

Specifications are subject to change without notice.

DOWNLOAD BROCHURE

ENGLISH    FRENCH

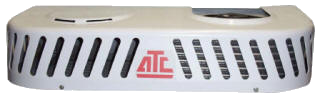

Truck Refrigeration Systems

SERIES 15

MODEL
EVAPORATOR
RETURN AIR
BTU/HR (WATTS)

WEIGHT
IN-TRANSIT
STANDBY
LB
KG
15M
35F (1.7C)
13,000 (3810)
215
98
15L 0F (-17.8C) 6,300 (1846)   215 98
15ME 35F (1.7C)   11,000 (3224) 300 137
15LE
0F (-17.8C)

4,750 (1392)
300
137
*Capacities and weights are approximate
