STANDARD FEATURES

-Engine driven compressor
-ABS (UV) Protected covers
-Spal Axial flow motors
-Internal drier assembly
-Copper tube/aluminum fin coils
-Compact ceiling mounted evaporator assembly
-Ceiling sweep airflow design
-In-Cab control assembly
-Digital box temperature display
-High/Low pressure protection
-Condenser fan cycle control
-Automatic off cycle defrost control (medium temp)
-Two piece designed system
-2 HP 230/1/60 compressor drive motor (standby models)

OPTIONAL FEATURES

-2 HP 115/1/60 compressor drive motor

WARRANTY

A.T.C offers a one year parts and labour warranty on every refrigeration system.

Specifications are subject to change without notice.

DOWNLOAD BROCHURE

ENGLISH FRENCH

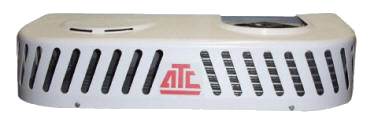

Truck Refrigeration Systems

SERIES 12

MODEL	EVAPORATOR RETURN AIR	BTU/HR (WATTS)		WEIGHT
MODEL	EVAPORATOR RETURN AIR	IN-TRANSIT	STANDBY	LB	KG
12M	35F (1.7C)	10,000 (2931)		200	91
12ME	0F (-17.8C)		7,600 (1392)	310	140

*Capacities and weights are approximate
